History of Aluminum In The Aerospace Industry

Did you know that Aluminum makes up 75%-80% of a modern aircraft?

The history of aluminum in the aerospace industry goes way back. Aluminum was used in aviation before airplanes had been invented. In the late 19th century, Count Ferdinand Zeppelin used aluminum to make the frames of his famous Zeppelin airships.

Aluminum is ideal for aircraft manufacture because it’s lightweight and strong. Aluminum is roughly a third the weight of steel, allowing an aircraft to carry more weight and become more fuel efficient. Furthermore, aluminum’s high resistance to corrosion ensures the safety of the aircraft and its passengers.

Common Aerospace Aluminum Grades

In aerospace engineering, the choice of material is as critical as the design of the aircraft. Each aircraft aluminum grade has unique characteristics suited for different aerospace applications. These are the most common aircraft aluminum grades:

2024 – Typically used in aircraft skins, cowls, and aircraft structures. Also used for repair and restoration.

3003 – This aluminum sheet is widely used for cowls and baffle plating.

5052 – Commonly used to make fuel tanks. 5052 has excellent corrosion resistance (particularly in marine applications).

6061 – Typically used for aircraft landing mats and many other non-aviation structural end-uses.

7075 – Commonly used to strengthen aircraft structures. 7075 is a high-strength alloy and is one of the most common grades used in the aviation industry (next to 2024).

History of Aluminum in the Aerospace Industry

Since its inception, aluminum has been pivotal in the evolution of aircraft design. From the early days of flight to the present day in the aerospace industry, aluminum has been the material of choice for aircraft bodies, shaping the physical contours of the aircraft and making it more innovative and efficient. These are some of the milestones of aircraft aluminum in the aerospace industry.

The Wright Brothers

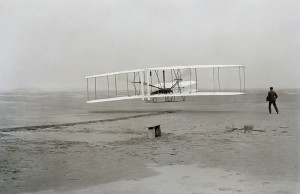

On December 17, 1903, the Wright brothers made the world’s first human flight with their airplane, the Wright Flyer.

At the time, automobile engines were very heavy and didn’t deliver enough power to achieve take-off. The Wright brothers built a special engine in which the cylinder block and other parts were made from aluminum.

As aluminum was prohibitively expensive and not widely available, the airplane was made from a Sitka spruce and bamboo frame covered with canvas. Due to the plane’s low airspeeds and limited lift-generating capability, keeping the frame extremely lightweight was essential, and wood was the only feasible material light enough to fly yet strong enough to carry the required load.

It would take over a decade for the use of aluminum to become more widespread.

World War I

Wooden aircraft made their mark in the earliest days of aviation, but during World War I, lightweight aluminum began to replace wood as an essential component for aerospace manufacture.

In 1915, German aircraft designer Hugo Junkers built the world’s first full-metal aircraft: the Junkers J 1 monoplane. Its fuselage was made from an aluminum alloy that included copper, magnesium, and manganese.

Golden Age of Aviation

The period between World War I and World War II came to be known as the Golden Age of Aviation.

During the 1920s, Americans and Europeans competed in airplane racing, which led to innovations in design and performance. Biplanes were replaced by more streamlined monoplanes, and there was a transition to all-metal frames made from aluminum alloys.

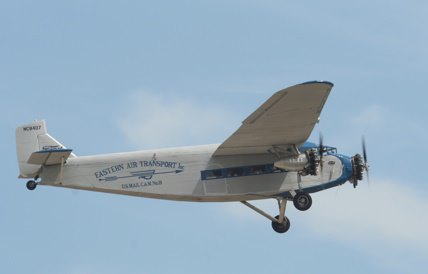

In 1925, the Ford Motor Co. entered the airline industry. Henry Ford designed the 4-AT, a three-engine, all-metal plane using corrugated aluminum. Dubbed “The Tin Goose,” it became an instant hit with passengers and airline operators.

By the mid-1930s, a new streamlined aircraft shape emerged, with tightly cowled multiple engines, retracting landing gear, variable-pitch propellers, and stressed-skin aluminum construction.

World War II

During World War II, aluminum was needed for numerous military applications – particularly the construction of aircraft frames – which caused aluminum production to soar.

The demand for aluminum was so great that in 1942, WOR-NYC broadcast a radio show, “Aluminum for Defense,” to encourage Americans to contribute scrap aluminum to the war effort. Aluminum recycling was encouraged, and “Tinfoil Drives” offered free movie tickets in exchange for aluminum foil balls.

From July 1940 to August 1945, the U.S. produced a staggering 296,000 aircraft, more than half of which were made predominantly from aluminum. The U.S. aerospace industry was able to meet the needs of the American military, and American allies, including Britain. At their peak in 1944, American aircraft plants were producing 11 planes every hour.

By the end of the war, America had the most powerful air force in the world.

The Modern Era

Since the end of the war, aluminum has become an integral part of aircraft manufacture. While the composition of aluminum alloys has improved, the advantages of aluminum remain the same. Aluminum allows designers to build a plane that is as light as possible, can carry heavy loads, uses the least amount of fuel, and is impervious to rust.

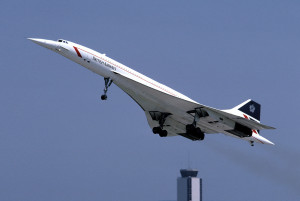

In modern aircraft manufacture, aluminum is used everywhere. The Concorde, which flew passengers at over twice the speed of sound for 27 years, was built with an aluminum skin.

The Boeing 737, the best-selling jet commercial airliner which has made air travel for the masses a reality, is 80% aluminum.

Today’s planes use aluminum in the fuselage, the wing panes, the rudder, the exhaust pipes, the door and floors, the seats, the engine turbines, and the cockpit instrumentation.

Space Exploration

Aluminum is invaluable not just in airplanes but also in spacecraft, where low weight coupled with maximum strength is even more essential. In 1957, the Soviet Union launched the first satellite, the Sputnik 1, which was made from an aluminum alloy.

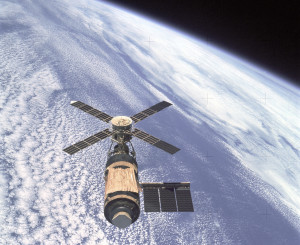

All modern spacecraft are comprised of 50% to 90% aluminum alloy. Aluminum alloys have been used extensively on the Apollo spacecraft, the Skylab space station, the Space Shuttles, and the International Space Station.

The Orion spacecraft – currently under development – is intended to allow human exploration of asteroids and Mars. The manufacturer, Lockheed Martin, has chosen an aluminum-lithium alloy for Orion’s main structural components.

Why is Aluminum Used for Aircraft Bodies?

Aluminum’s prominence in the construction of aircraft bodies is due to its outstanding material properties and performance characteristics. This lightweight metal offers a unique set of advantages that cater to the rigorous demands of aviation.

The primary reason for using aluminum in aircraft bodies is its exceptional strength-to-weight ratio. Aircraft require materials that are strong enough to withstand the stresses of takeoff, flight, and landing yet light enough to ensure fuel efficiency and increase payload capacity. Aluminum offers this balance, providing the structural integrity needed without the weight burden associated with other metals.

The aerospace environment subjects aircraft to harsh conditions, such as fluctuating temperatures, moisture, and chemical exposure. Aluminum alloys are treated to enhance their corrosion resistance, ensuring longevity and reducing maintenance needs. This durability is crucial for the safety and reliability of aircraft over many years of service.

Aluminum can be shaped and formed into the complex contours of aircraft bodies and parts, allowing for aerodynamic designs that improve fuel efficiency and performance. This malleability, combined with its lightweight nature, makes aluminum ideal for constructing the fuselage, wings, and other critical components of an aircraft. The thermal conductivity of aluminum also helps in the efficient dissipation of heat generated by the aircraft during flight, contributing to the overall temperature regulation of the structure.
