How Heat Treatment of Metals Work

What is heat treatment?

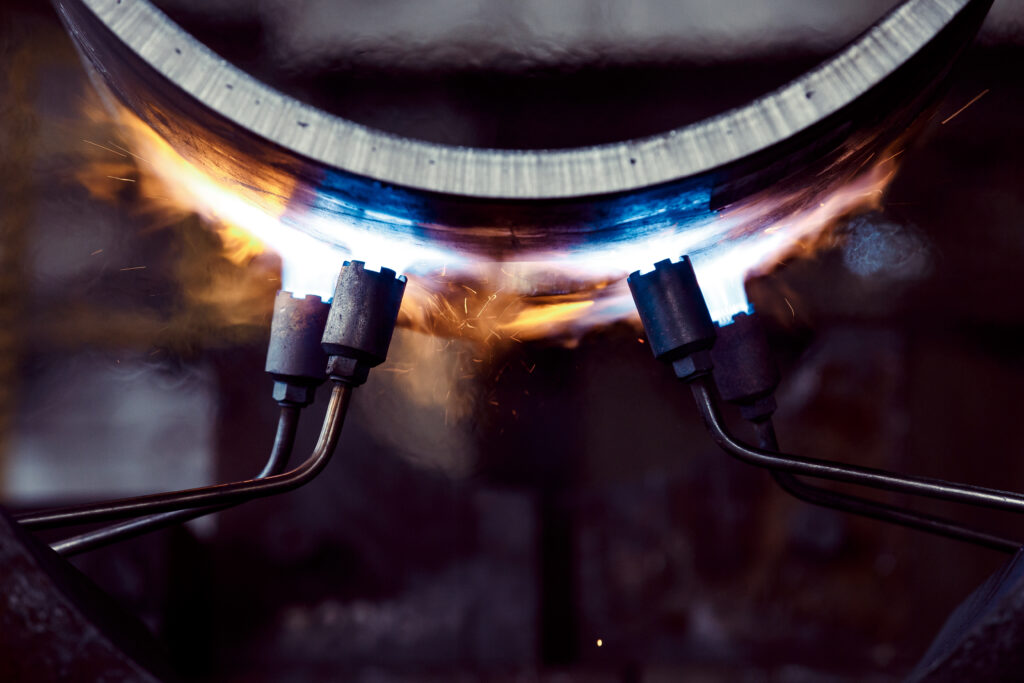

Heat treatment is a comprehensive process wherein metals and alloys are heated to a specific temperature, kept at that temperature for a certain duration (a process referred to as soaking), and then cooled at a controlled rate.

This procedure is designed to alter the physical and mechanical properties of metals without changing their shape, or composition. As the heat-treating process is complex and requires precision, it is conducted in specialized furnaces under carefully regulated conditions.

The aim is to enhance desirable characteristics in metals, such as hardness, toughness, and ductility, to better suit their intended applications.

Supplementing this, heat treatment can also play a vital role in reducing internal stresses in materials, achieved through a process known as stress relieving. Moreover, it aids in improving various other features, like the wear resistance and magnetic properties of metals.

This scientifically fascinating process is also artistically captivating as it can cause color changes in metals, contributing to the aesthetics of jewelry and decorative metalwork.

Its widespread applications span various industries, from automobiles to aerospace, construction to coin minting, and tool-making to dentistry. Understanding the precise science of heat treatment is the cornerstone of materials engineering and has immensely advanced the development of modern industrial civilization.

Why do we heat-treat metals?

The heat treatment process is integral to metallurgy and materials engineering. It aids in refining the structural properties of metals to make them suitable for diverse applications, from building construction to automotive and aerospace engineering. For instance, heat-treated steel is used in construction for its increased strength, while heat-treated aluminum is used in aircraft bodies for its low density and high resilience.

Moreover, heat treatment allows metals to be tailored to specific jobs. A metal’s ductility, for instance, can be enhanced for applications where it needs to be drawn into thin wires. Or, its hardness increased for uses that require resistance to wear.

The manipulation of metal properties through heat treatment offers extraordinary scope for customization. Thus, enabling engineers to match metals perfectly to their required roles.

Heat treatment is also employed to refine the microstructure of metals, enabling control over properties such as grain size and phase distribution. This opens up possibilities for advanced engineering applications where precision and performance are paramount. For example, in the semiconductor industry, heat treatment is used to control the properties of silicon wafers.

Similarly, in the medical field, heat-treated metals are used in a variety of implants and surgical instruments. Their enhanced properties ensure durability and safety. In essence, the breadth of heat treatment’s utility is a testament to its transformative power in metallurgy. From day-to-day items like cutlery and bicycle frames to complex machinery and infrastructures.

Benefits

Enhancement of Mechanical Properties

The primary benefit of heat treatment is the enhancement of a metal’s mechanical properties. Heat treatment can substantially improve a metal’s hardness, enabling it to withstand intense pressures without deforming.

This is particularly valuable in industries such as mining or construction, where equipment is often subject to extreme forces. Moreover, the process can change a metal’s toughness, making it more resistant to shock and impact – a critical factor in applications such as automobile manufacturing or aerospace engineering.

Increased Ductility and Malleability

Another significant advantage is the increase in ductility and malleability of metals. Through heat treatment, metals can become more pliable. This is beneficial in manufacturing processes where the metal needs to be bent, rolled into thin sheets, drawn into wires or made in different shapes.

Improved Specialized Properties

Heat treatment also bolsters specialized properties. The process can boost corrosion resistance, a valuable trait for metals used in environments where rust is a concern. Additionally, heat treatment can enhance the magnetic permeability of metals, making them more effective in applications like electric motor cores.

The process can also improve the heat conductivity of metals. This is a crucial factor for components in heat transfer systems like radiators and heat exchangers. Hence, heat treatment enables the tailoring of metals to meet highly specialized demands.

Disadvantages

Energy and Cost Implications

One significant disadvantage of heat treating lies in its energy consumption and cost. The process can be energy-intensive due to the high temperatures required, often leading to substantial electricity bills.

Moreover, the sophisticated furnaces and cooling equipment needed to precisely control temperatures require a substantial capital investment. Operational costs are also high, given the requirement for trained and experienced personnel to oversee the intricate process and ensure safety regulations are met.

Risk of Unwanted Changes

Another noteworthy drawback is the risk of inducing undesired changes in the metal if the process isn’t meticulously controlled. If heat treatment is not correctly executed, it can lead to warping, or distortion. Furthermore, the process can inadvertently increase the brittleness of the metal, compromising its toughness and making it prone to failure under impact.

Need for Expertise

Finally, heat treatment demands a high level of expertise. The process is complex and requires a deep understanding of metallurgy to predict and control the outcomes accurately. Inadequate knowledge or careless execution can not only yield unsatisfactory results but also pose significant safety hazards. Hence, the necessity for skilled operators is both a necessity and a challenge in the heat treatment process.

Stages of the heat treatment process

The heat treatment process generally involves two key stages: the heating stage and the cooling stage. The heating stage is when the metal is heated to a particular temperature, typically above its upper critical temperature. It’s crucial that this be done slowly and uniformly to prevent thermal stresses or structural deformities.

The heating stage often requires maintaining the temperature for a specific period, allowing the heat to penetrate thoroughly and ensure uniform transformation across the entire volume of the metal. This process, known as soaking, is critical for achieving consistent outcomes. The duration of soaking depends on the type of metal, its dimensions, and the desired properties.

The cooling stage follows, where the metal is cooled at a precisely controlled rate. The speed of cooling can affect the crystal structure that forms in the metal and, hence, its mechanical properties.

For instance, very fast cooling usually leads to a very fine-grained, harder, and more brittle structure, whereas slower cooling results in a coarser structure that is softer and more ductile. In this stage, the choice of cooling medium—whether air, oil, water, or brine—also significantly influences the characteristics of the final product.

It’s also worth mentioning an often-overlooked third stage, known as the tempering or stress-relief stage, which usually follows the cooling stage. This stage aims to eliminate the internal stresses induced during the previous stages, improving the material’s durability and stability.

Common heat treatment methods

Numerous heat treatment methods exist, each with unique outcomes. Among the most common are:

Annealing: This process involves heating the metal to a specific temperature, holding it there for a time, and then allowing it to cool slowly. The annealing process softens the metal, enhancing its ductility and reducing its hardness, making it easier to work with.

Quenching: In this method, the metal is heated and then quickly cooled by immersing it in a liquid or gas. This abrupt cooling makes the metal harder and more brittle.

Tempering: After quenching, metals are often too brittle for practical use. To alleviate this, they are tempered, which involves reheating to a temperature below the upper critical temperature and then cooling. This process reduces brittleness while retaining much of the hardness imparted by quenching.

Normalizing: Here, the metal is heated above its upper critical temperature and then allowed to cool in the air. This refines the grain structure and homogenizes the chemical composition of the metal. Ultimately, making it more robust and resistant to impact.

In addition to these methods, there are specialized heat treatment techniques designed for specific applications:

Case hardening: This process is used to create a hard, wear-resistant outer layer (or ‘case’) on a part while maintaining a tough, ductile interior. This is achieved by heating the metal in the presence of a carbon-rich environment.

Therefore, allowing carbon atoms to diffuse onto the surface. After reaching a certain temperature, the part is quickly quenched, hardening the carbon-enriched surface.

Precipitation hardening (also known as age hardening): This process is used on some types of alloys, particularly aluminum, nickel, and titanium alloys. The metal is heated to a relatively low, specific temperature and held there for a prolonged period. This causes fine particles to precipitate out of the alloy solution, which hinders dislocation movement and thereby strengthens the alloy.

Induction hardening: This method uses electromagnetic induction to heat the metal’s surface, followed by rapid cooling or quenching. This technique hardens the surface of the part while leaving the core relatively soft and tough. Thus, providing an excellent combination of strength and durability.

Each of these methods is tailored to specific metals and desired properties. This demonstrates the incredible versatility of heat treatment processes in metallurgy.

What metals can be heat treated?

Almost all types of metals and alloys can undergo heat treatment. This includes ferrous metals (containing iron), like steel and cast iron, and non-ferrous metals like aluminum, copper, and nickel. Each type of metal has its own unique heat treating requirements based on its specific properties. These include melting point, heat conductivity, and phase transformation characteristics.

Steel, a common construction and manufacturing material, often undergoes heat treatment to enhance its hardness, yield strength, and toughness. The numerous types of steel, each with different carbon content and alloying elements, respond differently to heat treatment. Therefore, allowing for a broad spectrum of mechanical properties to be achieved.

On the other hand, non-ferrous metals such as aluminum and copper can also be heat treated. Though the process differs from that for ferrous metals. For instance, certain aluminum alloys can undergo precipitation hardening to improve their strength. This will make them suitable for applications like aircraft parts or automotive components.

Other metals, like titanium and nickel, used in high-performance applications such as jet engines and medical implants often undergo complex heat treatment regimes to achieve the desired balance of properties. The widespread applicability of heat treating across various metals underscores its crucial role in modern industry and engineering.

Heat treatment factors & considerations

Executing a successful heat treatment process necessitates careful attention to a myriad of factors. Each playing a critical role in the process’s effectiveness. Paramount among these considerations are the type of metal being treated, its original structure, the desired mechanical properties, and the chosen heat treatment method.

Since each metal responds uniquely to heat—guided by its inherent thermal properties—a thorough comprehension of both the material’s attributes and the heat treatment process becomes indispensable.

Key among these thermal properties is the upper critical temperature—a pivotal threshold at which the metal’s structure starts to transform. Surpassing this temperature may compromise the integrity of the metal, underscoring the need for precise temperature control. Additionally, the rates of heating and cooling must be meticulously regulated to stave off thermal stresses and potential distortion. The metal’s heat conductivity plays a decisive role in determining these rates.

The environmental conditions within which heat treatment unfolds also warrant careful consideration. Some processes necessitate specific atmospheres—be it a vacuum, an inert gas, or a carbon-rich environment—to manage oxidation or catalyze desired chemical changes. Equally consequential is the choice of cooling medium—air, oil, or water—since it influences the cooling rate and, by extension, the metal’s final properties.

The dimensions and geometry of the metal piece also impact the heat treating process. Larger or intricately shaped parts may demand prolonged heating durations to ensure a uniform temperature throughout the material and might be more prone to distortion during the cooling phase.

Lastly, the importance of safety considerations cannot be overstated. The handling of metals at high temperatures and the operation of potentially hazardous equipment necessitates rigorous adherence to safety protocols, safeguarding both personnel and equipment.

Conclusion

In conclusion, heat treatment plays a vital role in modern manufacturing and engineering, offering a versatile means to manipulate the properties of metals. Through careful control of the heating and cooling stages, it’s possible to enhance characteristics such as hardness, ductility, toughness, and heat conductivity, tailoring metals to meet specific requirements.

Despite the complexity and costs involved, the range of applications and advantages offered by this process make heat treatment a valuable tool in the metallurgical field. As advancements continue in this area, we can expect even more refined control over material properties, leading to new applications and innovations.
