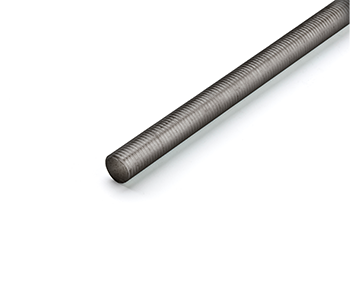

Alloy Steel Threaded Rod

How Alloy Steel Threaded Rod is Made

Alloy steel threaded rod undergoes a precise manufacturing process that transforms raw materials into dependable fasteners:

1. The selected alloy steel is cut using a band saw or shearing method to the appropriate length for further processing. The steel is usually cut slightly longer than the final product to allow for finishing.
2. The cut steel undergoes heat treatment to alter its physical and chemical properties.
3. The heat-treated steel is then processed to create threads. This is typically done through one of two methods:
   • Thread Rolling: The steel is rolled between dies to form threads.
   • Thread Cutting: For specialty or non-standard alloy steel threaded rod, the threads may be cut into the rod using precision machinery.
4. The rods often undergo additional heat treatment in a salt-bath furnace at temperatures of 400-500°C for 2-3 hours. This process, particularly important for B7 alloy steel threaded rod, helps stabilize the metal structure.
5. The threaded rods may receive surface treatments to improve corrosion resistance or appearance. This could include galvanizing, zinc plating, or other protective coatings.
6. The ends of the alloy steel threaded rod are chamfered (beveled) to remove sharp edges and facilitate easier starting of nuts.
7. Each rod undergoes inspection to ensure it meets dimensional specifications and performance requirements. This includes checking thread pitch, diameter (such as for 3/8 threaded rod), and mechanical properties.

Benefits of Alloy Steel Threaded Rod

Adding alloying elements to the steel threaded rod enhances the rod’s mechanical properties, resulting in superior tensile strength, improved fatigue resistance, and better performance under extreme temperatures. The exceptional strength-to-weight ratio allows engineers to specify smaller diameter rods while maintaining required safety factors, enabling more efficient designs and potential cost savings in the overall structure.

Carbon and alloy steel threaded rod variants can be heat-treated to achieve specific hardness levels for particular applications, offering versatility across diverse industrial environments. When properly specified and installed, alloy steel threaded rod provides long-term reliability even under cyclical loading, vibration, and thermal expansion conditions that would cause standard fasteners to fail.

What is the Difference Between Carbon and Alloy Steel Threaded Rod?

Carbon and alloy steel threaded rod serve similar purposes as fasteners but differ in composition and performance. Carbon steel threaded rod is primarily composed of iron and carbon (typically 0.08% to 2.11% carbon content), making it a cost-effective option for general-purpose applications. Alloy steel threaded rod contains additional elements like chromium, nickel, or molybdenum beyond its carbon steel composition.

This composition difference results in alloy steel threaded rod offering superior strength, hardness, and toughness compared to its carbon steel counterpart, with alloy steel capable of achieving tensile strength between 600 and 2000 MPa and yield strength of 350 and 1800 MPa.

The enhanced performance of alloy steel threaded rod makes it ideal for high-stress industrial applications, particularly those involving extreme conditions. B7 alloy steel threaded rod is especially popular for applications requiring exceptional tensile strength. However, these performance advantages come at a higher cost, as the addition of alloying elements and necessary heat-treatment processes make alloy steel threaded rod more expensive than carbon steel versions.
